Machinery & Equipment
Equipped with the latest lathes and machining centers we can machine by turning up to 400 mm diameter with a travel range of 1400 mm. With our machining centers we can use travel ranges up to 6000 mm.
Cylindrical – and flat grinding are made by DPM, likewise welding jobs and powder coating, everything from one hand.
| Type | Range | Dimension |
|---|---|---|
CNC Machining Centers |
||
| Hermle UWF 1130, 5 axes | Travel range | 1100x 720x 600 mm |
| Hermle UWF 1000 | Travel range | 700x 550x 500 mm |
| POSMILL 1100, | Travel range | 1100x 600x 510 mm |
| Kunzmann 1000 | Travel range | 1000x 600x 510 mm |
| MICRON VCE 800 PRO, 4 axes | Travel range | 800x 500x 510 mm |
| MICRON WF21C | Travel range | 400x 400x 400 mm |
| Niclas Corea | Travel range | 3000x1200x1200mm |
| Heller BEA2, 4 axes | Travel range | 800x 630x 630 mm |
CNC Turning Centers |
||
| Mori Seiki SL253 with living tools | Ø 350x1000 mm | |
| Mori Seiki SL1 | Ø 160x 240 mm | |
| Mori Seiki SL3 | Ø 200x 500 mm | |
Grinding |
||
| Okamoto | Flat | 800x 420x 520 mm |
| SMTW Eurogrinder | External | Ø200x1000 mm |
| Jung, Berlin D22 | Internal | Ø 150x 250 mm |

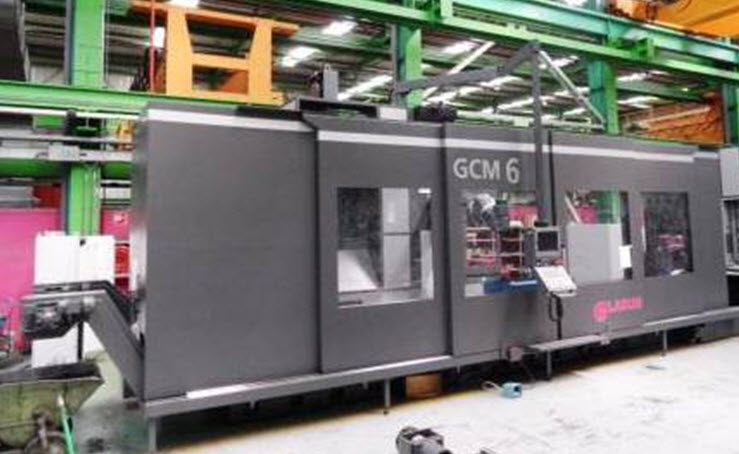

| Laguna GCM6 GGCM6 | Travel range | 6000x1500x2000 mm |
